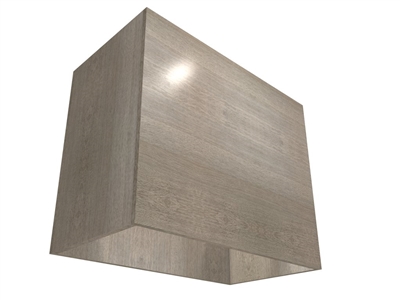

Hood Enclosure Cabinet

Hood Enclosure Cabinet

Alternative Views:


Retail Price $1,270.71
Sale Price + Options: $705.95
Savings: $564.76



Product Code: WHOODENCM

Size

WIDTH*:


HEIGHT*:


DEPTH*:


OPENING WIDTH*:


OPENING DEPTH*:

Doors and Drawer Fronts

Grain Direction*:

Advanced Options

Interior Color*:


Disclaimer*:
Hood Enclosure Special Attributes:The interior cabinet case (sides, back panel, and face panel) will be textured laminate over composite core. Cabinet sides on this cabinet will not need a finished end panel as the construction screws attach from the rear of the case (i.e. they are hidden against the back wall), and the dowels are hidden behind the face panel (i.e. you do not need separate finished end panel to cover the sides of this one cabinet, they are already integrated).

Disclaimer #2*:
Hood Enclosure Special Attributes #2:This product is shipped in four separate pieces. The face and back panels will overlap the left and right sides creating seams on each side. Face and back panels are attached using the "pre-glued" green dowels included in your hardware package. Soak these dowels in water first, then insert, and firmly press face panel to the sides to complete the assembly.

Disclaimer #3*:
Hood Enclosure Special Attributes #3:The grain direction on the left and right sides will always be vertical (i.e. grain direction of the door can be changed to horizontal/vertical, but the exposed sides will always remain vertical in grain orientation).

Qty:
Description

This is a custom wall hood enclosure cabinet. This is a bit of an odd cabinet as it assembles slightly different than our normal wall cabinets. This cabinet is designed for use with an interior hood liner such as a Vent-a-hood. This cabinet comes with a single large door panel on the face that is attached by using the dowels provided. See the wire frame diagram in the product pictures for more info on assembly. To use the green dowels provided, simply soak, or spray with a bit of water to activate the glue. Next, press the dowels into the pre drilled holes on the face/edge of the left and right cabinet sides. Then, align dowels with the holes drilled on the backside of your face panel. Next firmly press them together. Use some tape to secure the face panel to the cabinet case, then allow to dry for 24 hours. Use a pin nail at the top and bottom of the cabinet for additional support as needed. Lastly test to ensure the panel is securely attached.
Quick Specifications
Custom Cabinets - Made In Oregon

Exposed Interior Cabinets (the interior of the cabinet is visible)


Construction

All cabinets are shipped ready to assemble (i.e. flat packed)
Full overlay (flush look) frameless construction (European style, confirmat screw assembly)
Full access (maximum storage capacity with no wasted space)
Cabinet backs are removable 3/4" thick textured laminate, allowing you to install the cabinets to the wall, then install the back thereby hiding the screws used for cabinet installation.

Materials
Doors are made in Oregon using Italian/Spanish textured laminate (composite core) and banded with extremely durable 1mm thick matching PVC banding
Cabinet interiors are Italian/Spanish textured laminate, horizontal grain, (*banding is vertical grain on the left and right sides)
Drawer Boxes are made in Oregon, dovetailed Baltic 5/8" birch plywood (fully assembled, notched, sanded, then clearcoat finished to ensure smooth joints)

Hardware
Knobs and Pulls are not included with any of our cabinets
Hinges are made in North Carolina, Blum Inserta Blumotion (soft closing, self closing)
Drawer slides are made in North Carolina, Blum Tandem plus Blumotion (soft closing, heavy duty)
All needed hardware for assembly is included with your order (includes assembly screws, shelf pins, hinge plates, etc)

Notes
Construction holes will be visible on the sides of the cabinet once assembled.
Finished end panels (ordered separately) should be ordered to finish off the exposed cabinet sides after installation.
